Facade Cleaning Robot
Y3
Obstacle-Crossing Facade Cleaning Robot
A modular facade-cleaning robot engineered for vertical and inclined surfaces, with active obstacle crossing, redundant safety systems and long operating endurance.
Curtain WallsComplex FacadesHigh-Rise
Product Gallery
Clean product views.
01 / 06
Overview
Built for real-world deployment.
Y3 combines strong adsorption with flexible mobility for glass and facade structures that include protrusions or transitions. Autonomous navigation, chain-break protection and redundant safety controls support continuous work on vertical and inclined surfaces.
Crosses facade obstacles up to 20 cm
Strong adsorption with redundant safety protection
Flexible movement on vertical and inclined surfaces
One-pass cleaning with intelligent navigation
Autonomous navigation and path planning
Chain-break protection for safer high-rise operation
Modular structure for transport and servicing
Up to seven hours of operating endurance
Applications
Where it works.
Complex curtain walls01
Glass facades02
Stone facades03
Inclined structures04
High-rise towers05
Specifications
Official product data.
Key dimensions, performance and operating details for evaluation.
Robot weight
90 kg excluding batteries
Operating height
Up to 600 m
Surface angle
0–90°
Obstacle clearance
Up to 20 cm
Maximum speed
0.5 m/s
Cleaning efficiency
100–250 m²/h

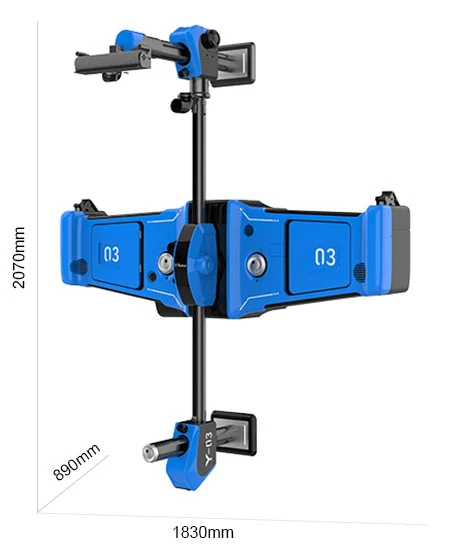

Expanded dimensions
2070 × 1830 × 890 mm

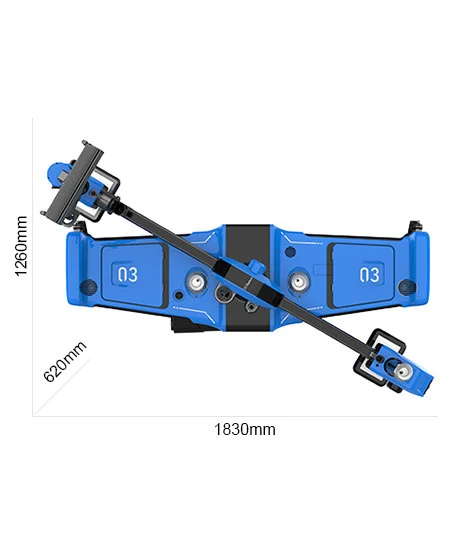

Folded dimensions
1260 × 1830 × 620 mm
Minimum glass width
800 mm
Minimum glass thickness
5 mm
Cleaning width
400 mm
Protection rating
IP54
Battery
2 × 43.2 V / 60 Ah
Operating endurance
≥ 7 hours
More visuals
System details and real deployments.

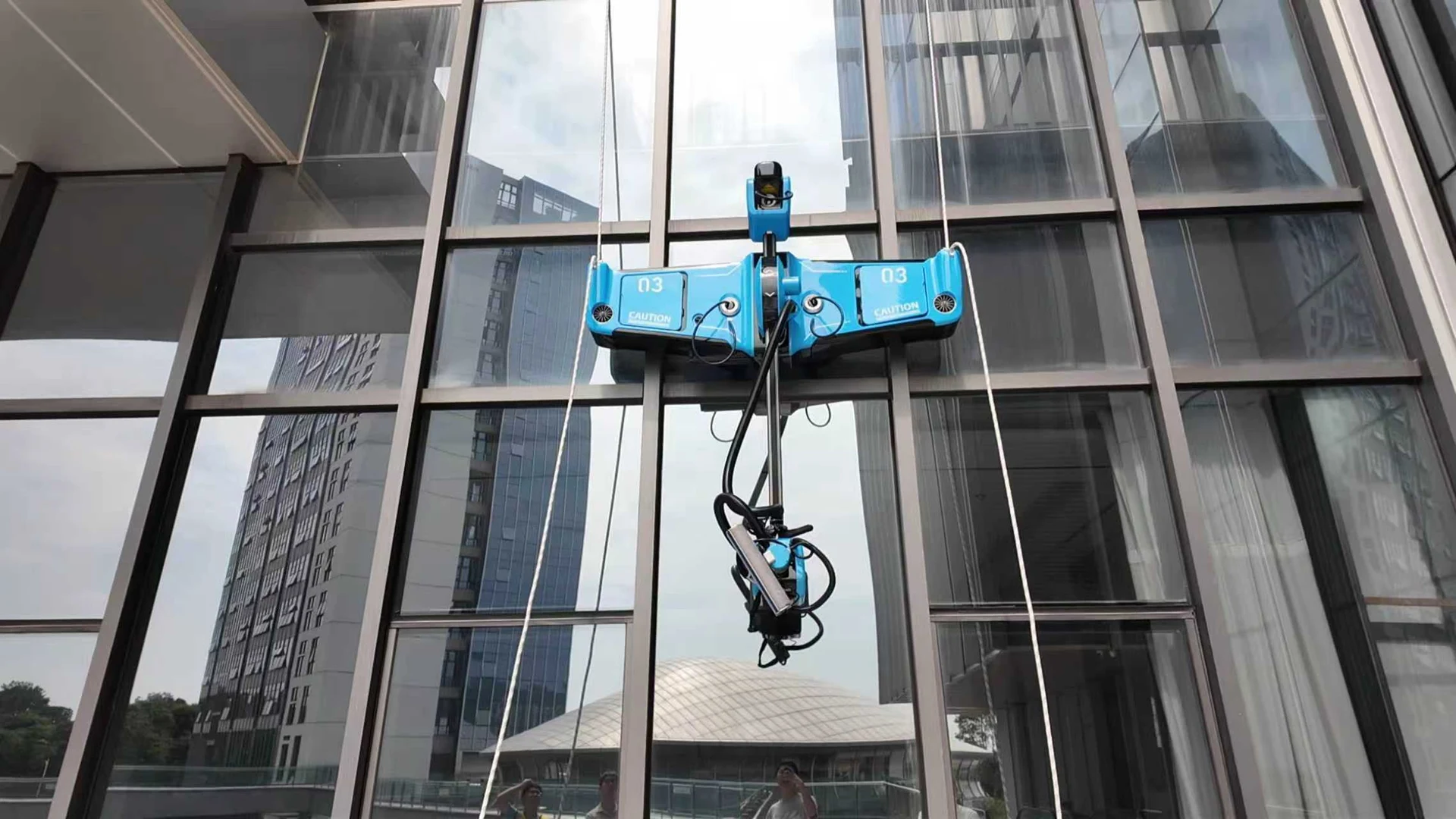

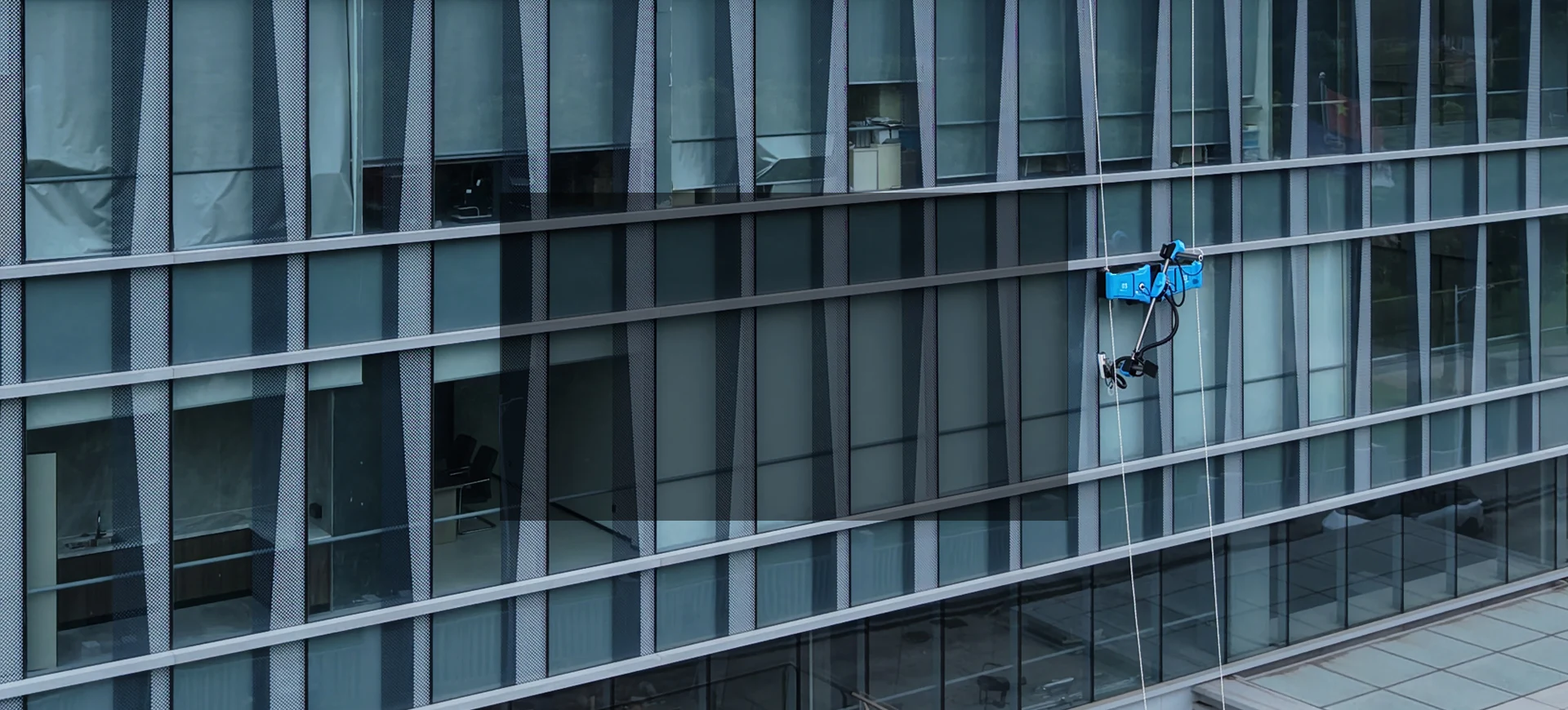

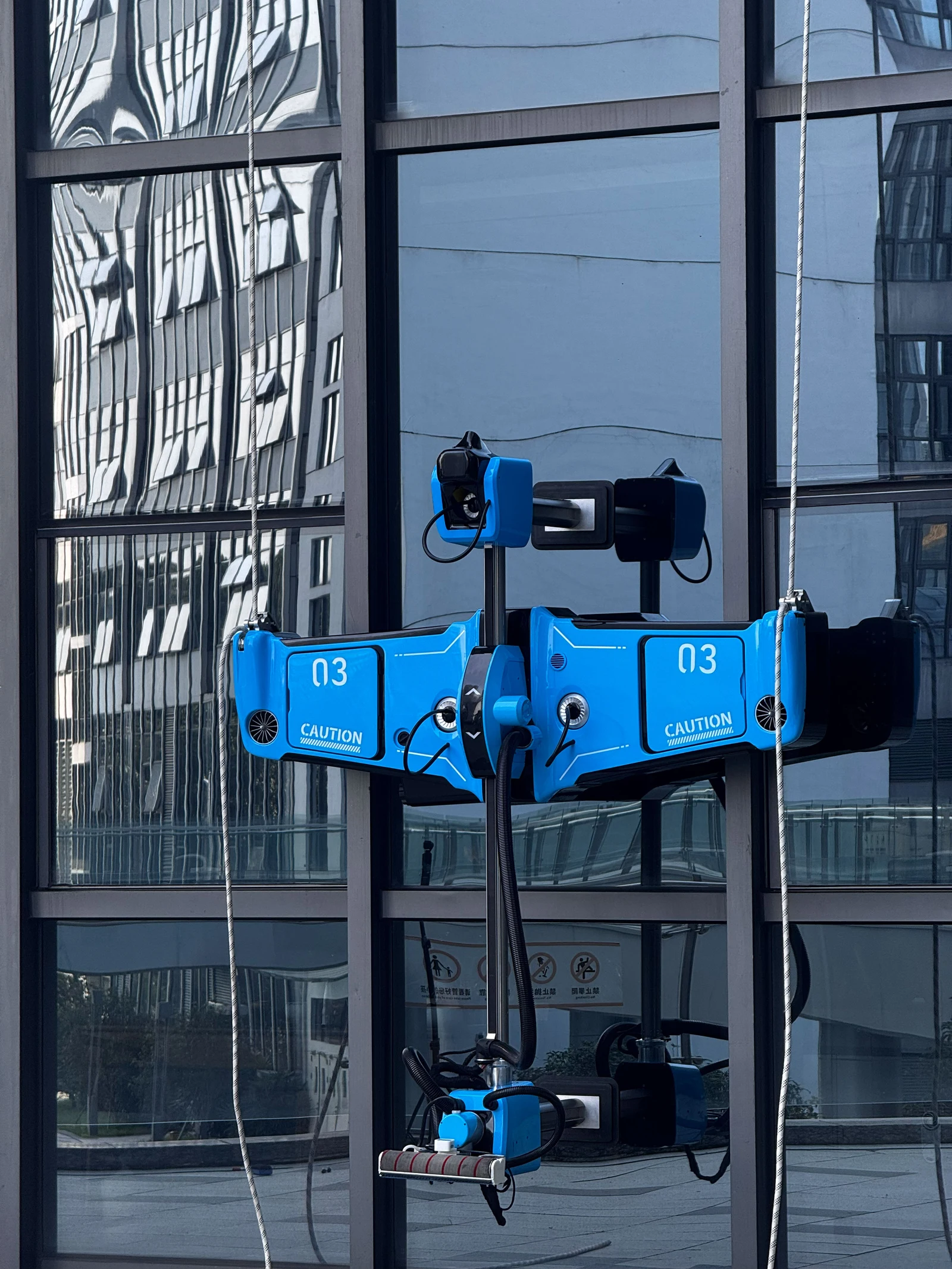

Obstacle-crossing facade operation
The articulated Y3 platform maintains surface contact while moving across complex facade transitions.

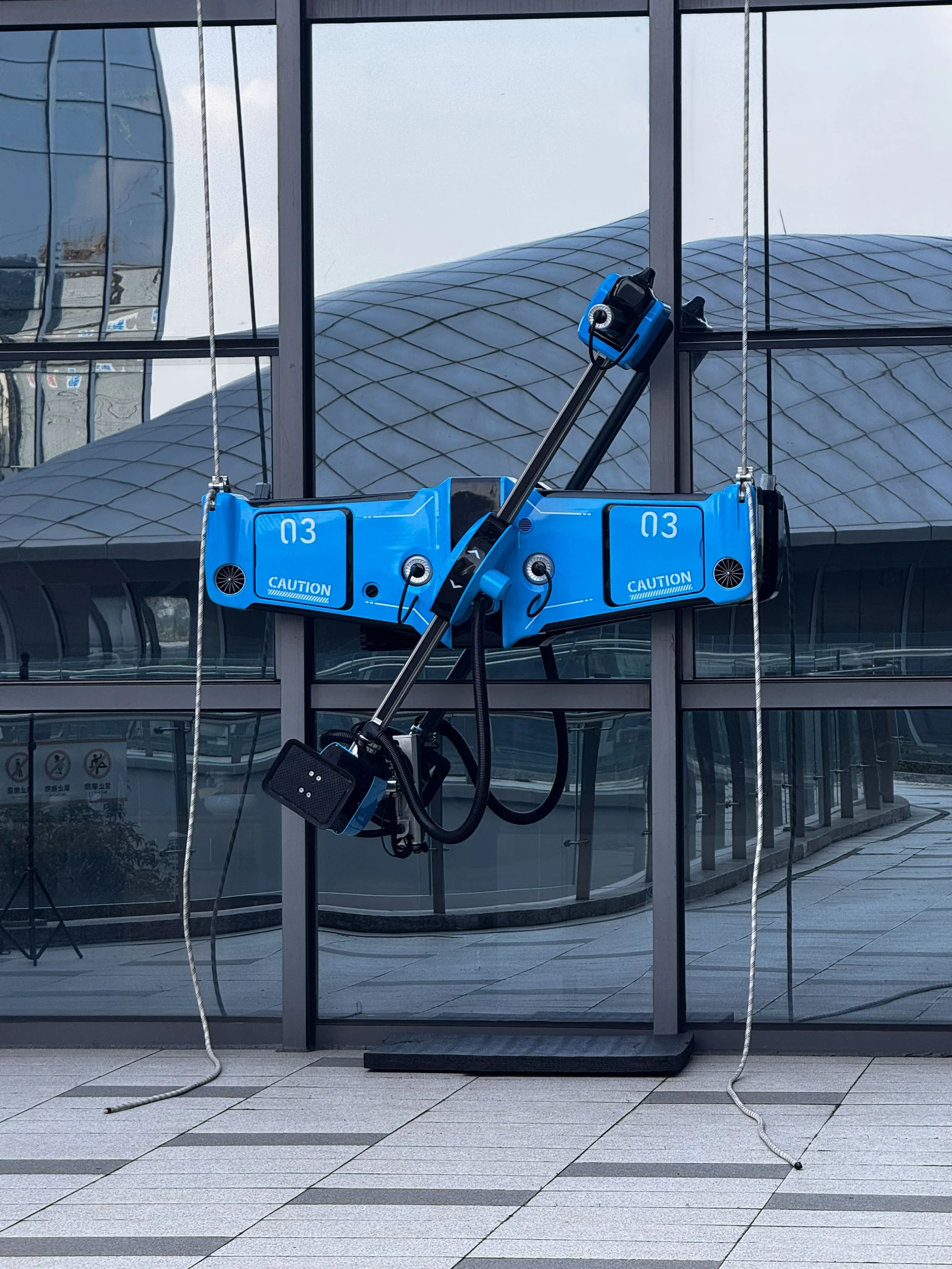

Articulated cleaning reach
Its modular frame is engineered for vertical and inclined surfaces with continuous cleaning coverage.
